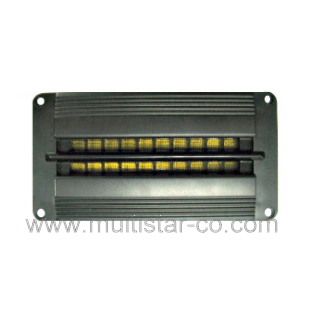

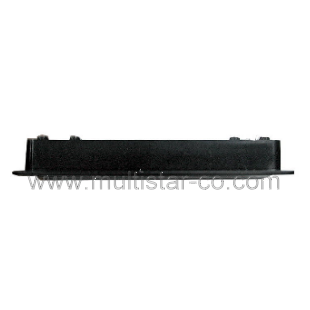

RBA-12 Ribbon Tweeter

Add to Inquiry Open Inquiry

Rated Impedance: 8 W ± 15%
Rated Power: 50 W
Max. Power: 80 W
Sensitivity (1W/M): 96 dB ± 3dB , 1W/1M
Frequency Range: 1.5K Hz ~ 40 KHz -10dB / ±20% Hz
D.C Resistance (Rdc): 6.8 Ω± 15 %
Magnet: 8 x 3 x60 mm (Neodymium)
Membrane: Ribbon Diaphragm
Basket / Baffle        : ABS
Dimension: 90 W x 170 H x 26 D mm
Weight: 0.7 kg
