PF-3B03CTV

Add to Inquiry Open Inquiry

Rated Impedance: 1666.6Ω(6W), 3333.3Ω(3W),6666.6Ω(1.5W)
Rated Power: 6 W
Max. Power: 10 W
Sensitivity: 80 dB ± 3dB, 1W/1M

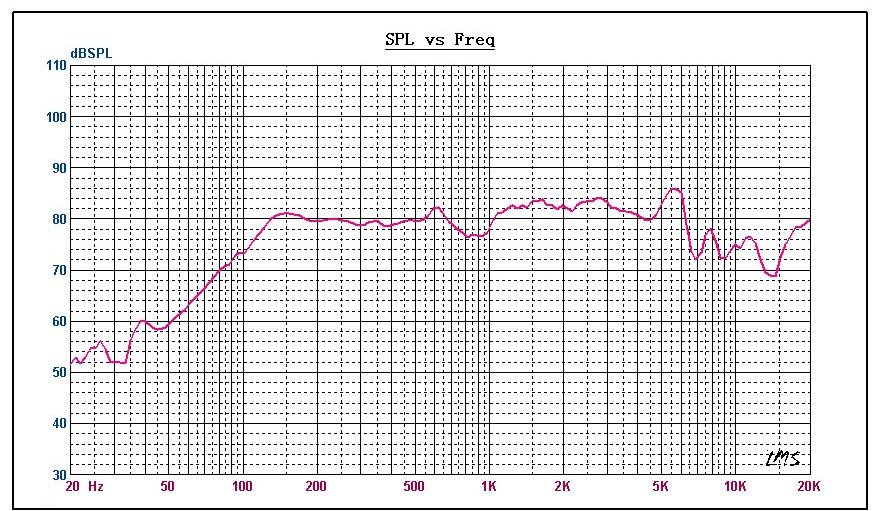

Frequency Range: 80Hz ~ 13 KHz -10dB / ±20% Hz
Whistling : 50 Volts at  6 W Tap
Rated Voltage: 100 V
Power Taps: 6-3-1.5W

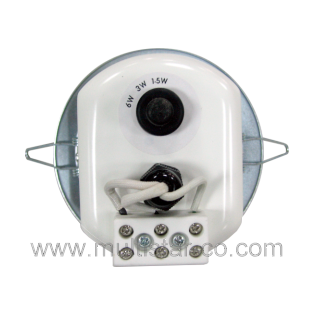

Termination: Ceramic Terminal
Baffle: Steel, RAL 9010

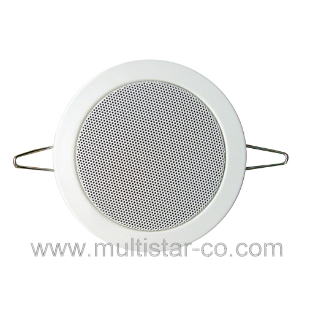

Mesh Grille: Steel, RAL 9010
Dimension: 104Фx 69 H mm
Weight: 0.6 kg
